IBM Blow Moulding Machine For Pharmaceutical Packaging

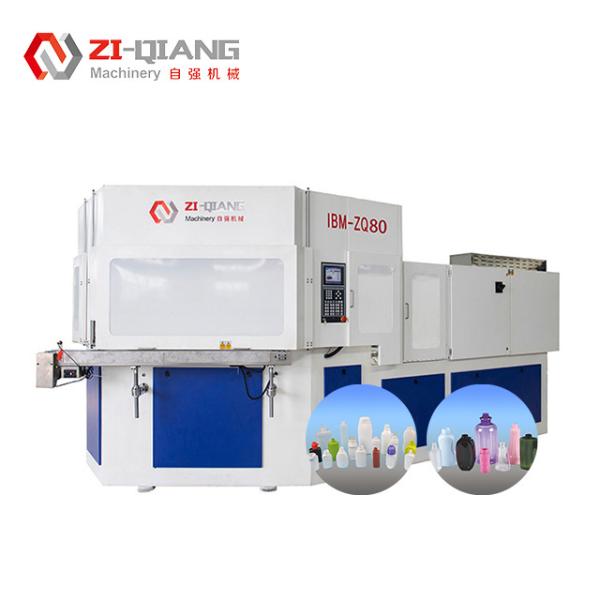

ZQ80 IBM Blow Moulding Machine PP PE Bottle 80 Ton Machine
IBM Blow Moulding Machine Description
IBM machines can be used in the production of industrial packaging solutions like drums, canisters, and industrial containers.
IBM machines are employed in the pharmaceutical industry for manufacturing various types of packaging for medicines, vitamins, and supplements.
IBM (Injection Blow Molding) machines have revolutionized the pharmaceutical packaging industry by offering advanced manufacturing capabilities.
Benefits of IBM Machines in Bottle Production
All European style structure, the silver mold force is 20%-30% larger than the products in the same industry.
Equipped with high-precision angle splitter as standard, it can realize the synchronization between opening and closing molds and turret lifting and lowering.
Unique pressurized clamping structure, the pressurized cylinder does not participate in the opening and closing of the mold action, standard hydraulic dual system, energy consumption is 20%-30% more than the same industry products.
IBM Blow Moulding Machine Details
| Item | Unit | ZQ80 |
| Injection System |
| Screw Diameter | mm | 55 |
| Screw L/D | % | 22:01 |
| Injection weight | g | 314 |
| Heating power | KW | 20 |
| Number of barrel zone | | 5+N |
| Injection stroke | mm | 160 |
| Clamping System |
| Clamping force of injection | KN | 800 |
| Opening stroke for injection | mm | 140 |
| Clamping force of blowing | KN | 120 |
| Opening stroke for blowing | mm | 140 |
| Lifing height of rotary table | mm | 70 |
| Mould |
| Max.Platen size(L*W) | mm | 800*400 |
| Mold thickness | mm | 280 |
| Dia.of bottle | mm | 120 |
| Bottle height | mm | 220 |
| Suitable bottle height | mm | 1-1000 |
| Stripping stroke | mm | 230 |
| Hydraulic system |
| Hydraulic Pressure | Map | 14 |
| Motor power | KW | 22+22 |
| Dry cycle | S | 4 |
| Total Power | KW | 70 |
| Operating power | % | 52-70 |
| Others |
| Min.Air pressure of compressed air | MPa | 0.7-1.2 |
| Compressed air capacity | M³/min | 0.7 |
| Water flowage | M³/h | 4 |
| Cooling water pressure | MPa | 0.3-0.4 |
| Dimension(L*W*H) | M | 4.5*1.6*2 |
| Net weight | Ton | 10 |
| Bottle Volume |
| Cavity Number | Machine Model | 10ml | 30ml | 60ml | 100ml | 250ml | 500ml | 1000ml |
| | ZQ40 | 9 | 8 | 6 | 4 | 3 | 2 | 1 |
| | ZQ60 | 14 | 12 | 10 | 8 | 5 | 3 | 2 |
| | ZQ80 | 20 | 18 | 14 | 12 | 8 | 5-6 | 3-4 |
| | ZQ110 | 24 | 22 | 18 | 14 | 10 | 8 | 6 |
| | ZQ135 | 30 | 26 | 22 | 18 | 14 | 10 | 8 |
