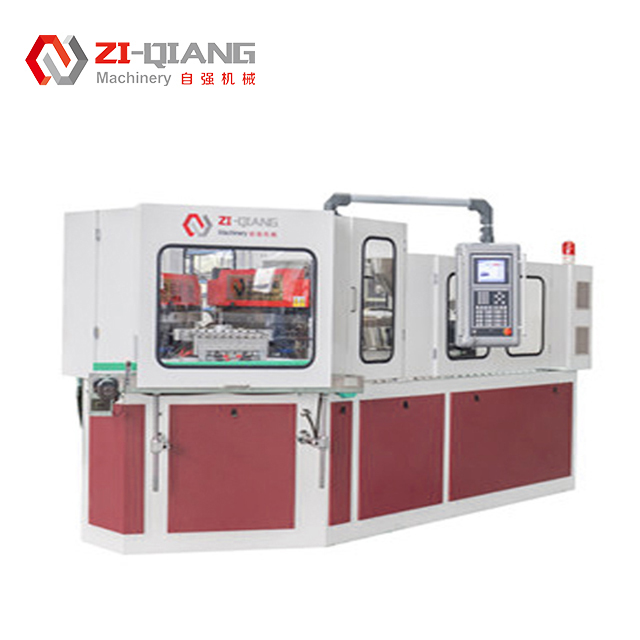

Fully Automatic Injection Blow Molding Machine with 600 KN Clamping Force for 5ml To 2L Hollow Parts and 11/15 Kw Motor Power

Name: Fully Automatic Injection Blow Molding Machine with 600 KN Clamping Force for 5ml To 2L Hollow Parts and 1115 Kw Motor Power
Brand: ZI QIANG
Price: 40000 USD

China Fully Automatic Injection Blow Molding Machine with 600 KN Clamping Force for 5ml To 2L Hollow Parts and 11/15 Kw Motor Power factory

Brand Name : ZI QIANG

Model Number : ZQ 40

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 40000 USD

Payment Terms : T/T

Supply Ability : 15 SET/MONTH

Delivery Time : 45 work day

Warranty : 1 year

Station : Three In One

Automatic : Full Automatic

More Application : Milk & Yogurt Bottle

Automation Grade : Automatic

Power Supply : 220V/380V/415V

Blow Mold Stroke : 120 mm

Control System : PLC

Hollow Part Volume : 5ml To 2L

Trademark : DAWSON

Motor Power : 11/15 Kw

Machine Dimension : 3.8m X 1.4m X 1.8m

Injection Clamping Force : 600 KN

Contact Now

Fully Automatic Injection Blow Molding Machine with 600 KN Clamping Force for 5ml To 2L Hollow Parts and 11/15 Kw Motor Power

Item	Unit	ZQ60
Injection System
Screw Diameter	mm	45
Screw L/D	%	22:1
Injection weight	g	260
Heating power	KW	14
Number of barrel zone		3+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	600
Opening stroke for injection	mm	140
Clamping force of blowing	KN	100
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	600*390
Mold thickness	mm	240
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22
Dry cycle	S	4
Total Power	KW	37
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	3.51.41.8
Net weight	Ton	5
